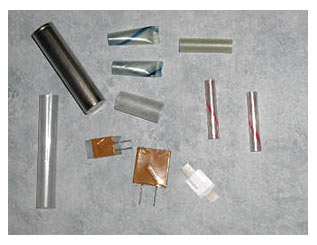

Mylar Heat Shrink Tubing - BD360
M23053/7 Class 2
Mylar Heat Shrink Tubing is a superior, high
dielectric insulation material that provides a tight,
smooth protective covering. It is extremely easy to
use and is suitable for hand or machine application,
with no special or costly shrinking equipment
necessary. Mylar tubing may be shrunk by heat
guns, electrical coil heaters or ovens. It is shrinkable
by as much as 50% of its diameter in order to provide
an immovable, tight fit. Temperature requirements
are as low as 90°C for shrinking purposes with a heat
cycle as short as one second.
Mylar Heat Shrink is spiral wound to practically
any diameter and length. It is an excellent choice for
both high temperature and electrical insulation; for
protection of coils and components; or as a
replacement for tape.
Physical property values are published by
DuPont and are typical for 65 gauge Mylar polyester
film. Further information on Mylar film is available
from the DuPont Co. Our Engineering Dept. will be
glad to work with you on individual requests.
